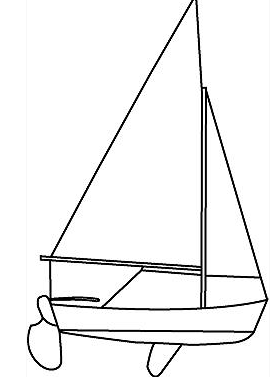

Bauer 10 Sloop Rig
Description
The Bauer 10 is a versatile, high-quality fiberglass daysailer and yacht tender designed by Christof Bauer and built by Bauteck Marine Corporation since 1983, with approximately 200–250 units produced as of 2025. Featuring a fractional sloop rig with reefable main, retractable centerboard, beaching rudder, and high freeboard, it’s optimized for stability, ease of handling, and multi-purpose use (sailing, rowing, motoring). Its lightweight, hand-laid fiberglass construction with epoxy moisture barriers and teak trim ensures durability and low maintenance, making it ideal for family day sailing, junior training, or serving as a tender for larger yachts.
The standard boat dimensions
| i | 10.92 ft |
|---|---|
| j | 2.88 ft |
| p | 15.33 ft |
| e | 7.33 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 10.92 ft | 2.88 ft | 15.33 ft | 7.33 ft | - | - | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 15.33 ft - (4673 mm) |
| Foot | * 7.33 ft - (2234 mm) |
| Leech | * 16.59 ft - (5057 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 16.76 ft - (5108 mm) |
| Head (inches) | * 3.5 in - (89 mm) |
| Area | * 58.13 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 9.5 ft - (2896 mm) |
| Foot | 4.83 ft - (1472 mm) |
| Leech | 9 ft - (2743 mm) |
| Percentage LP | * 157.22 % |
| Length Perpendicular | * 4.52 ft - (1378 mm) |
| Deck Angle | * 6.04 ° |
| Area | * 21.45 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
