B-25 (Beiley B-25)
Description

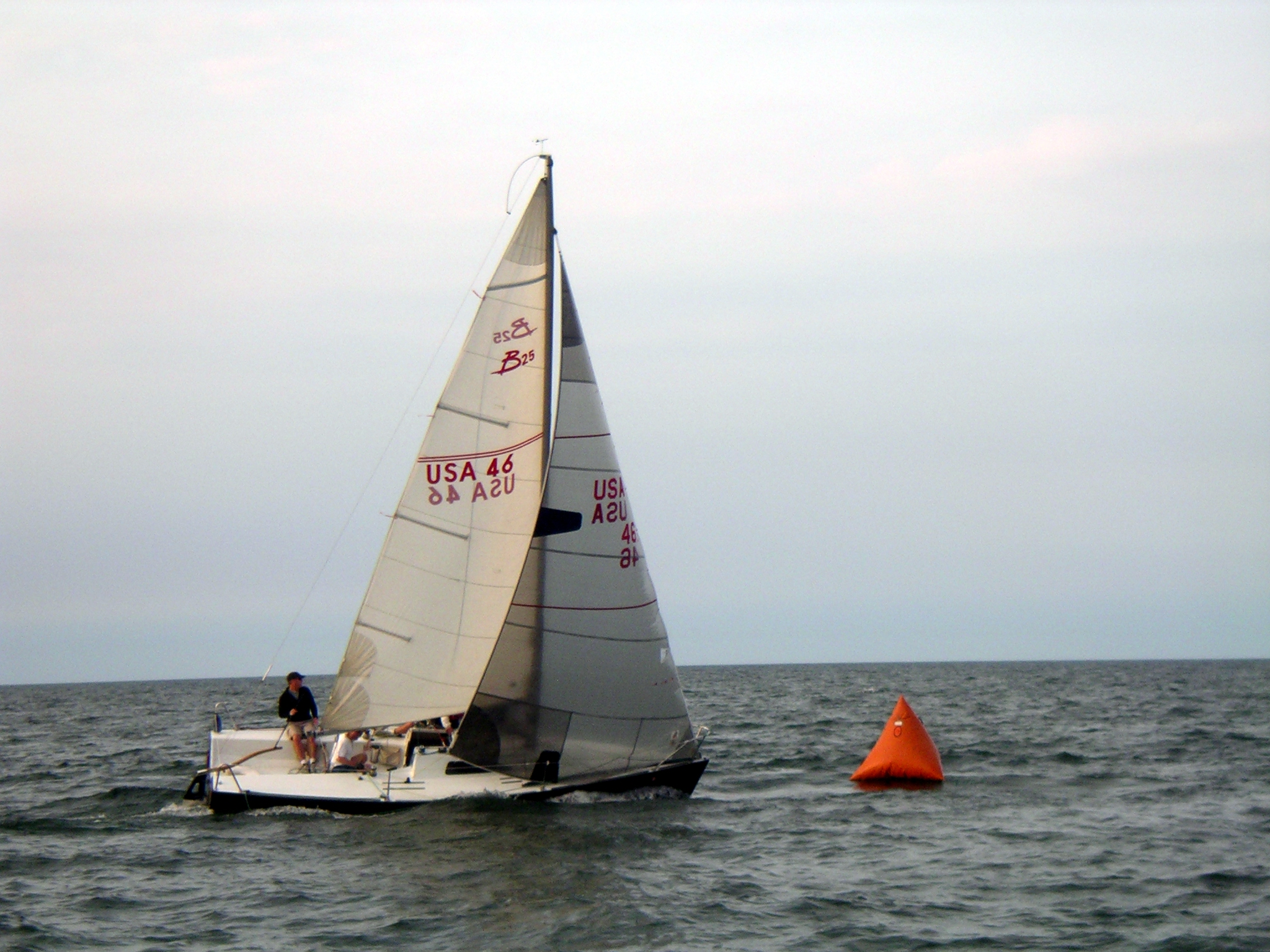

The B-25 (also known as the Beiley B-25) is a high-performance racing sailboat designed by Leif Beiley and built by Bboats in the USA, primarily in Long Beach, California, starting in 1989. Often regarded as one of the first "sport boats," it's a lightweight, trailerable racer emphasizing speed, simplicity, and one-design racing. With a production run producing around 50 hulls (up to at least hull #41), it's constructed with advanced materials like Kevlar with epoxy over PVC foam core (Divinycell 80, not balsa) for a stiff, light hull, and marine plywood for bulkheads and frames. The design focuses on trailerability, low weight (under 1,800 lb. dry), and agility, making it ideal for club racing, MORC (Midget Ocean Racing Club), or PHRF events—typically rating around 138, with modifications like a full roach main (-3 rating) or high-aspect rudder (-3) allowing further optimization. It's suited for short-handed crews (2–4 people) and excels in light to moderate winds but can feel tender in heavy air due to its low ballast/displacement ratio. While primarily a racer, it can be adapted for daysailing with roller furling and outboard auxiliary.
The standard boat dimensions
i | 28 ft |
---|---|
j | 8.50 ft |
p | 28 ft |
e | 11 ft |
p2 | - |
e2 | - |
I | J | P | E | P2 | E2 |
---|---|---|---|---|---|
28 ft | 8.50 ft | 28 ft | 11 ft | - | - |
Blueprints2>
Sails
Sail Type | MAINSAIL |
---|---|
Luff | * 28 ft - (8534 mm) |
Foot | * 11 ft - (3353 mm) |
Leech | * 29.44 ft - (8973 mm) |
Tack Angle | * 87.98 ° |
Diagonal | * 29.72 ft - (9059 mm) |
Head (inches) | * 5.25 in - (133 mm) |
Area | * 158.87 ft² |
Sail Type | JIBSAIL |
---|---|
Luff | 27.5 ft - (8382 mm) |
Foot | 8.75 ft - (2667 mm) |
Leech | 26 ft - (7925 mm) |
Percentage LP | * 97.29 % |
Length Perpendicular | * 8.27 ft - (2521 mm) |
Deck Angle | * 2.13 ° |
Area | * 113.75 ft² |
Sail Type | GENOA |
---|---|
Luff | 27.8 ft - (8473 mm) |
Foot | * 13.65 ft - (4161 mm) |
Leech | * 26.23 ft - (7995 mm) |
Percentage LP | * 150 % |
Length Perpendicular | * 12.75 ft - (3886 mm) |
Deck Angle | * 4.05 ° |
Area | * 177.21 ft² |
Sail Type | SPINNAKER |
---|---|
Stays | * 27.8 ft - (8473 mm) |
MidGirth | * 15.3 ft - (4663 mm) |
Foot | * 15.3 ft - (4663 mm) |
Perc LP | * 180 % |
Area | * 362 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
