Azure Cove Eleven
Description
Specific designer credits are not widely documented, but the Azure Cove 11 appears to be part of a series of small sailboats from the "Azure Cove" line, potentially inspired by classic American dinghy designs like the O'Day Daysailer or Precision 10. It was likely introduced in the late 20th century for amateur sailors, with a focus on fiberglass or plywood construction for durability and low cost. The name "Azure Cove" evokes serene sailing spots, aligning with its intended use in protected waters.
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | 14.92 ft |
| e | 8 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | 14.92 ft | 8 ft | - | - |

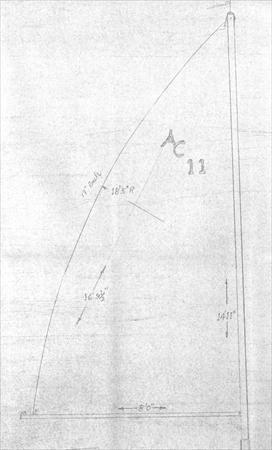

Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | 14.92 ft - (4548 mm) |
| Foot | 8 ft - (2438 mm) |
| Leech | 16.77 ft - (5111 mm) |
| Tack Angle | * 88.89 ° |
| Diagonal | 16.792 ft - (5118 mm) |
| Head (inches) | 3.5 in - (89 mm) |
| Area | * 62.11 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
