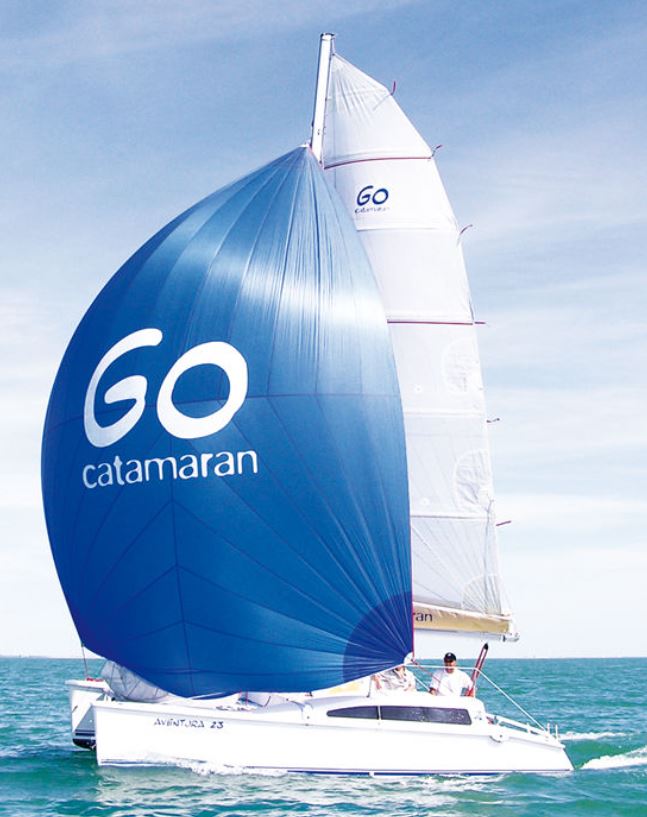

Aventura 23
Description
Designer: Nestor Volker Builder: Fibermold Weight: 2760lbs LOA: 23' Year: 1994-1998 Q: X2300 to X2377
Construction Details
| Designer | Unknown |
|---|---|
| Length | 23.000 ft |
| LOA | 35.760 ft |
| Beam | 19.490 ft |
| Displacement | 17416 lb |
| Max Draft | 3.940 ft |
The standard boat dimensions
| i | 25.26 ft |
|---|---|
| j | 9.84 ft |
| p | 29.53 ft |
| e | 10.33 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 25.26 ft | 9.84 ft | 29.53 ft | 10.33 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | 24.18 ft - (7370 mm) |
| Foot | 9.94 ft - (3030 mm) |
| Leech | 21.56 ft - (6571 mm) |
| Percentage LP | * 231.07 % |
| Length Perpendicular | * 8.85 ft - (2697 mm) |
| Deck Angle | * 9.8 ° |
| Area | * 107.02 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 26.8 ft - (8169 mm) |
| Foot | 13.22 ft - (4029 mm) |
| Leech | 25.46 ft - (7760 mm) |
| Percentage LP | * 88.64 % |
| Length Perpendicular | * 12.41 ft - (3783 mm) |
| Deck Angle | * 2.18 ° |
| Area | * 166.24 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | 29.2 ft - (8900 mm) |
| Foot | 10.1 ft - (3078 mm) |
| Leech-AftHdBd | * 30.63 ft - (9336 mm) |
| Tack Ang | * 89.66 ° |
| Diag (clew/head) | 30.84 ft - (9400 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 152.23 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | 26.57 ft - (8099 mm) |
| MidGirth | 18.37 ft - (5599 mm) |
| Foot | * 21.01 ft - (6404 mm) |
| Perc LP | * 180 |
| Area | * 475 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | 28.74 ft - (8760 mm) |
| Foot | 10.1 ft - (3078 mm) |
| Leech-AftHdBd | * 30.63 ft - (9336 mm) |
| Tack Ang | * 92.28 ° |
| Diag (clew/head) | 30.84 ft - (9400 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 149.79 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 26.8 ft - (8169 mm) |
| Foot | 13.22 ft - (4029 mm) |
| Leech | 25.46 ft - (7760 mm) |
| Percentage LP | * 110.31 % |
| Length Perpendicular | * 12.41 ft - (3783 mm) |
| Deck Angle | * 1.12 ° |
| Area | * 166.24 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 26.41 ft - (8050 mm) |
| Foot | 9.51 ft - (2899 mm) |
| Leech | 24.25 ft - (7391 mm) |
| Percentage LP | * 64.21 % |
| Length Perpendicular | * 8.72 ft - (2658 mm) |
| Deck Angle | * 3.78 ° |
| Area | * 115.21 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | 37.07 ft - (11299 mm) |
| MidGirth | 21.98 ft - (6700 mm) |
| Foot | * 17.71 ft - (5398 mm) |
| Perc LP | * 180 |
| Area | * 558 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
