Auk
Description

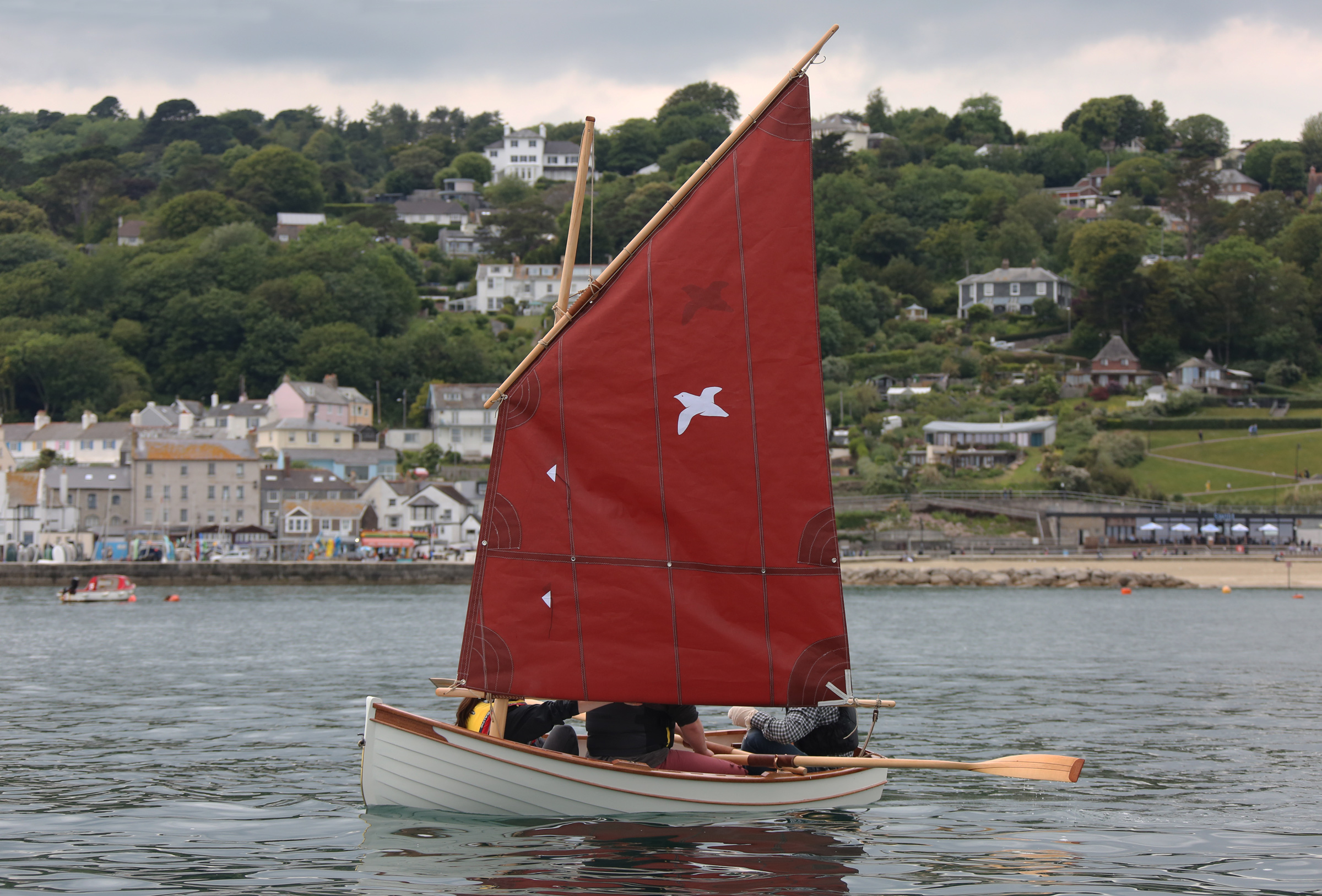

The Auk sailboat, designed by Iain Oughtred, is a compact, glued-lapstrake plywood dinghy, renowned for its traditional aesthetics and versatility as a tender, rower, or sailboat. Measuring 7'10" (2.39 m) in length overall, it’s part of Oughtred’s series of small craft inspired by Scandinavian and British working boats.
Construction Details
| Designer | Iain Oughtred |
|---|---|
| Length | 7.833 ft |
| LOA | 7.830 ft |
| Beam | 4.167 ft |
| Displacement | 75 lb |
| Max Draft | 2.083 ft |
| Min Draft | 0.500 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Blueprints
Sails
| Sail Type | LUGSAIL |
|---|---|
| Luff | 4.5 ft - (1372 mm) |
| Foot | 6 ft - (1829 mm) |
| Leech | 9.75 ft - (2972 mm) |
| Tack Angle | * 83.53 ° |
| Diag (clew/throat) | 7.083 ft - (2159 mm) |
| Head | 6.75 ft - (2057 mm) |
| Area | * 37.31 ft² |
| Sail Type | SPRIT |
|---|---|
| Luff | 6 ft - (1829 mm) |
| Foot | 5.5 ft - (1676 mm) |
| Leech | 8.67 ft - (2643 mm) |
| Tack Angle | 87 ° |
| Diag (clew/throat) | * 7.92 ft - (2414 mm) |
| Head | 5.33 ft - (1625 mm) |
| Area | * 37.21 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
