Atkins Florence Oakland
Description

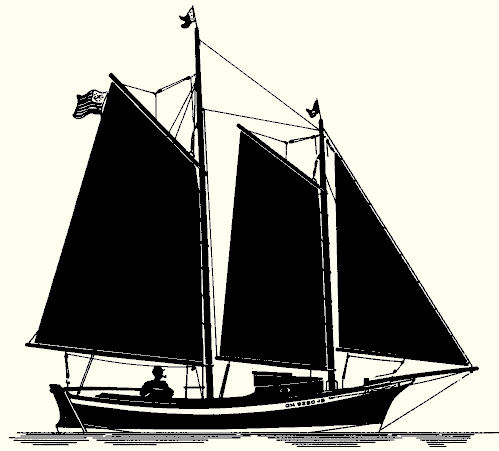

The Atkins Florence Oakland is a sailboat designed by Atkin & Co..
Custom sail calculations are not possible for this boat as no I, J, P and E dimensions are available.
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | 17.42 ft - (5310 mm) |
| Foot | 8.75 ft - (2667 mm) |
| Leech | 13.67 ft - (4167 mm) |
| Area | * 58.96 ft² |
| Sail Type | GAFF MAIN |
|---|---|
| Luff | 13.5 ft - (4115 mm) |
| Foot | 11.75 ft - (3581 mm) |
| Leech | 18.083 ft - (5512 mm) |
| Tack Angle | * 76.37 ° |
| Diag (clew/throat) | 15.67 ft - (4776 mm) |
| Head | 8.33 ft - (2539 mm) |
| Area | * 142.28 ft² |
| Sail Type | GAFF MAIN |
|---|---|
| Luff | 12.33 ft - (3758 mm) |
| Foot | 7.42 ft - (2262 mm) |
| Leech | 15.75 ft - (4801 mm) |
| Tack Angle | * 82.2 ° |
| Diag (clew/throat) | 13.5 ft - (4115 mm) |
| Head | 6.83 ft - (2082 mm) |
| Area | * 91.17 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
