Atkin 16 (Active Ii)
Description

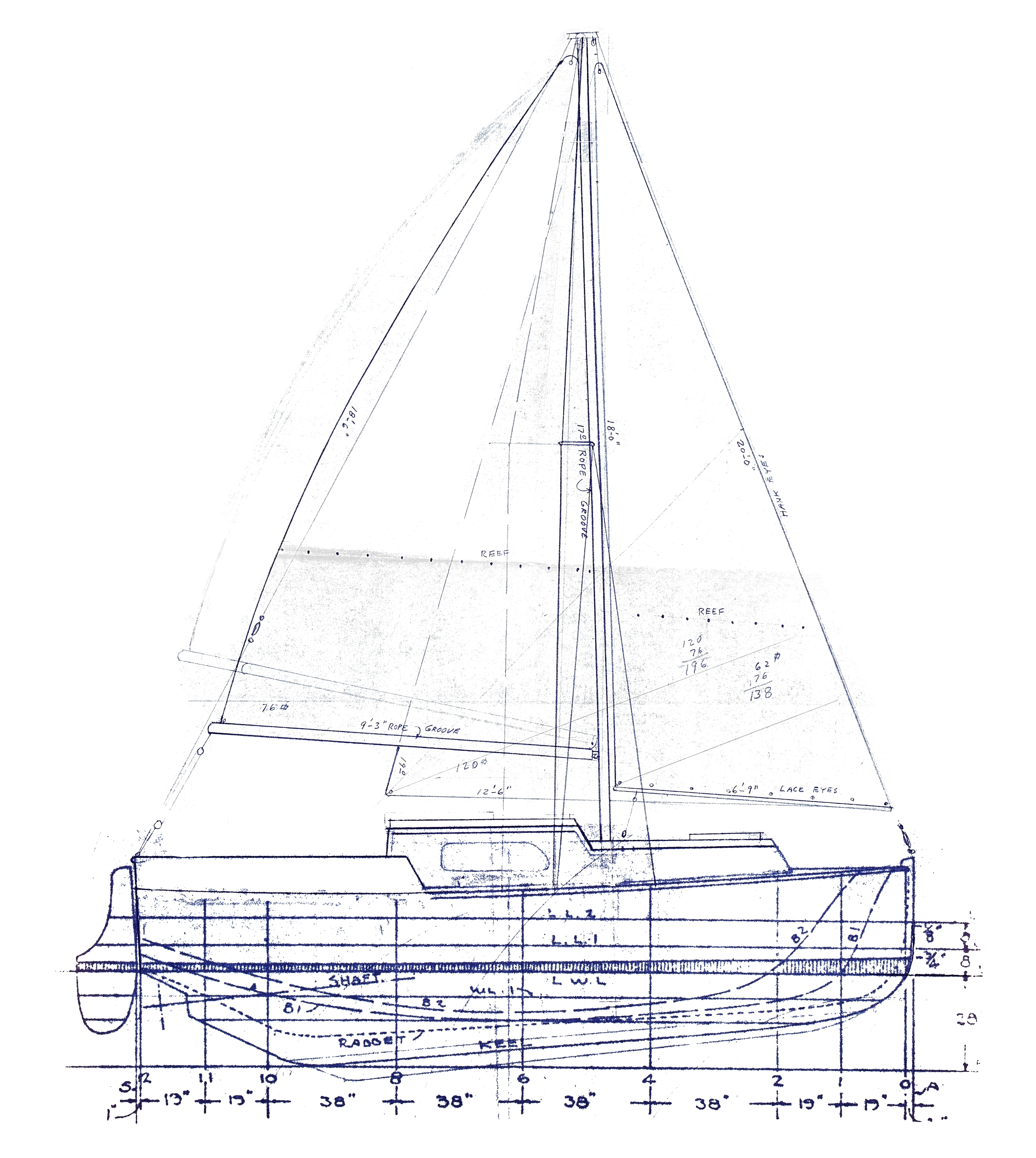

This is the Atkin 16-foot sloop, "Active II" — a fin-keel, sloop-rigged dory designed by William Atkin in 1934. from the original Atkin & Co. plans for Active II, published in The Rudder or MoToR BoatinG in 1934–35. It’s a performance-oriented day sailer — more agile upwind than the pirogue-rigged Active III, but less forgiving in gusts due to the deeper fin keel and higher sail plan.
The standard boat dimensions
| i | 20 ft |
|---|---|
| j | 7.42 ft |
| p | 17 ft |
| e | 9.25 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 20 ft | 7.42 ft | 17 ft | 9.25 ft | - | - | - | - |
Blueprints
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | 17 ft - (5182 mm) |
| Foot | 9.25 ft - (2819 mm) |
| Leech | 18.5 ft - (5639 mm) |
| Tack Angle | * 84.1 ° |
| Diagonal | 18.5 ft - (5639 mm) |
| Head (inches) | 4 in - (102 mm) |
| Area | * 81.29 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 20 ft - (6096 mm) |
| Foot | 6.75 ft - (2057 mm) |
| Leech | 18 ft - (5486 mm) |
| Percentage LP | * 81.27 % |
| Length Perpendicular | * 6.03 ft - (1838 mm) |
| Deck Angle | * 6.4 ° |
| Area | * 60.27 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 20 ft - (6096 mm) |
| Foot | 12.5 ft - (3810 mm) |
| Leech | 19 ft - (5791 mm) |
| Percentage LP | * 155.12 % |
| Length Perpendicular | * 11.51 ft - (3508 mm) |
| Deck Angle | * 2.63 ° |
| Area | * 115.08 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 20.27 ft - (6178 mm) |
| Foot | * 12.24 ft - (3731 mm) |
| Leech | * 18.65 ft - (5685 mm) |
| Perc LP | * 165 % |
| Area | * 186 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
