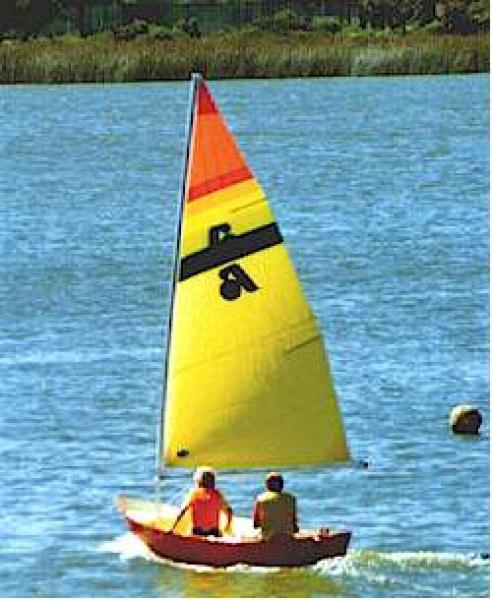

Argie 10
Description
The Argie 10 is a compact, versatile 3-in-1 sailing dinghy (sail, row, or motor) designed by South African naval architect Dudley Dix in the late 1980s as a larger sister to the Dixi Dinghy. Commissioned by the Argus Newspaper Group for a DIY series feature, it was named after the "Argie Boys" (newspaper vendors) and intended as an accessible, home-buildable project using stitch-and-glue plywood construction. Like its sibling the Argie 15, it's a lightweight, open boat emphasizing family fun, training, and utility as a yacht tender, but in a more portable size. Thousands of Dix designs have been built globally, with the Argie 10 popular among amateurs for its simplicity and low cost—requiring just three sheets of 6mm plywood for the entire hull, including buoyancy compartments, rudder, and daggerboard.
Construction Details
| Designer | Dudley Dix |
|---|---|
| LOA | 10.167 ft |
| Beam | 4.420 ft |
| Displacement | 64 lb |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | 13.94 ft |
| e | 7.38 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | 13.94 ft | 7.38 ft | - | - | - | - |
Blueprints
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | 13.94 ft - (4249 mm) |
| Foot | 7.38 ft - (2249 mm) |
| Leech | 15.38 ft - (4688 mm) |
| Tack Angle | * 86.76 ° |
| Diagonal | 15.4 ft - (4694 mm) |
| Head (inches) | * 3.5 in - (89 mm) |
| Area | * 53.6 ft² |
| Comments |
9" luff sleeve, 2 leech battens, 6" leech roach, loose footed. |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
