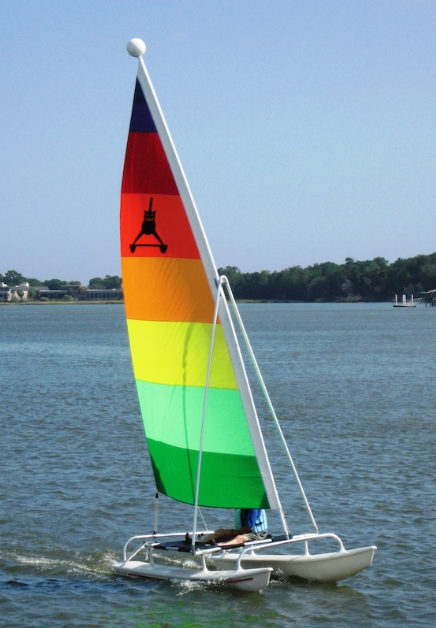

Aqua Cat 14

Description

The Aqua Cat 14 is a lightweight fiberglass catamaran sailing dinghy designed for recreational day sailing, one-design racing, and beginner training. Produced by American Sail Inc. (Hanover, PA), it evolved from the earlier Aqua Cat 12, with production starting in the 1970s and continuing as of 2025. The Aqua Cat 14, which was developed in-house by American Sail Inc. after acquiring assets in 1976 but retained the core concepts from Javes' work. The series became one of the most popular one-design catamaran classes in the 1960s–1970s, emphasizing simplicity, safety, and accessibility for recreational sailing. This 14-foot catamaran is trailerable, beach-launchable, and ideal for solo sailors, families, or sailing schools on lakes, bays, or calm coastal waters (up to 1 ft chop). It features a boomless single-sail rig on a tubular "A-frame" aluminum mast, eliminating standing rigging for simplicity and safety, and uses fixed skegs (replacing daggerboards) for easy beaching through surf. With a capacity of 3–4 adults (up to 1,000 lbs.), it offers greater stability and payload than the Aqua Cat 12, making it versatile for family outings or light racing. Owners praise its quick setup (10–15 minutes solo), portability (cartoppable or trailered under 400 lbs.), and unsinkable design due to foam flotation. While not as fast as competitors like the Hobie 16, its forgiving handling and high capacity make it a favorite for resorts and learn-to-sail programs.

Construction Details

Designer Aurther Javes
Builder American Sail Inc. (Hanover, PA)
Length 14.000 ft
LOA 14.330 ft
LWL 14.000 ft
Beam 6.040 ft
Displacement 230 lb
Max Draft 0.670 ft
Request A Sail Quote

The standard boat dimensions

i -
j -
p 20.75 ft
e 11 ft
p2 -
e2 -
i2 -
j2 -

Sails

Sail Type MAINSAIL
Luff * 20.75 ft - (6325 mm)
Foot 11 ft - (3353 mm)
Leech 18.74 ft - (5712 mm)
Tack Angle 65 °
Diagonal 18.94 ft - (5773 mm)
Head (inches) * 4.5 in - (114 mm)
Area * 106.451 ft²
Comments Sleeve Luff. Loose footed. The 12" opening in the sleeve for the A-Frame attachment is 9' 6" above the tack.

Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
