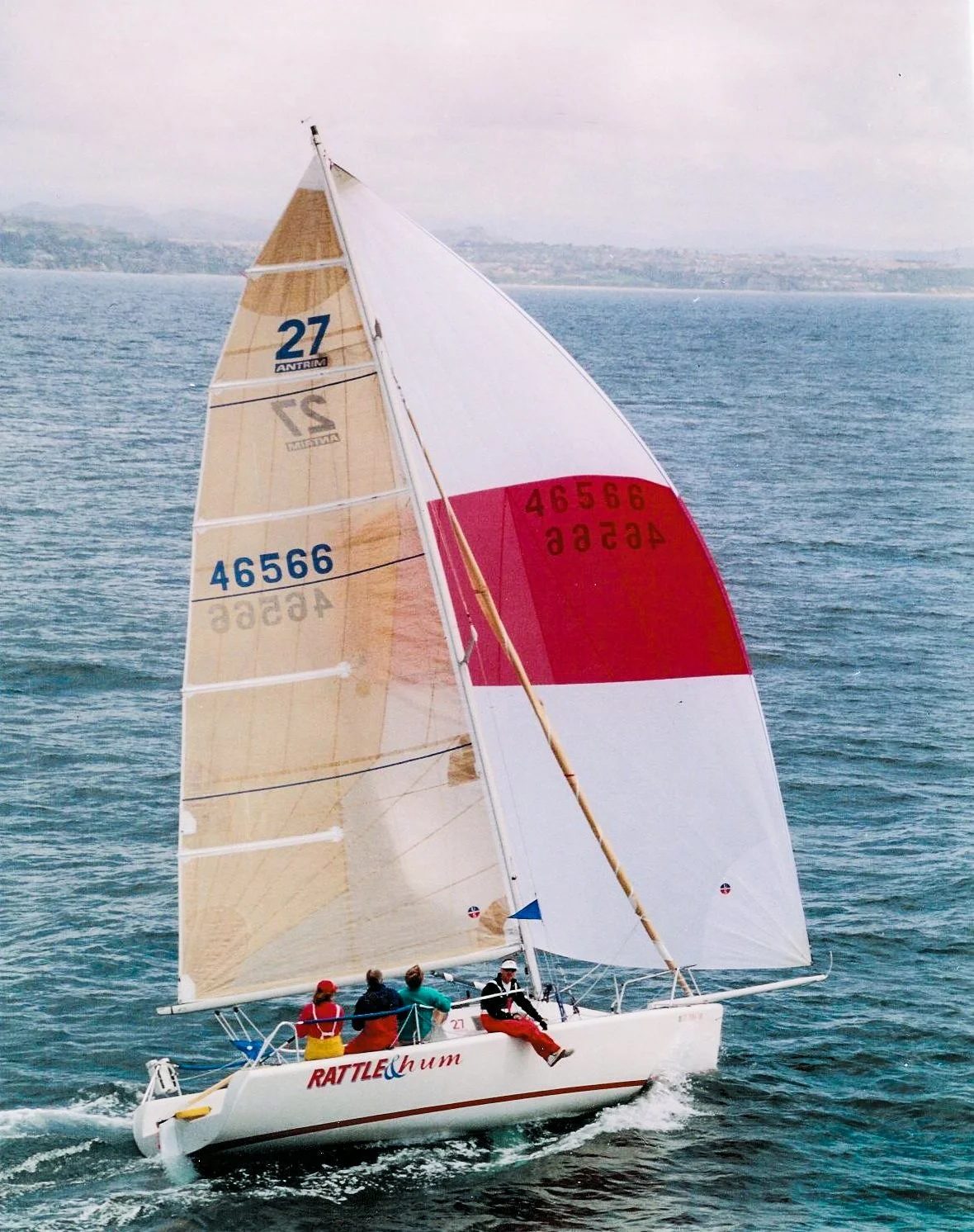

Antrim 27
Description
The Antrim 27, designed by Jim Antrim in the mid‑1990s, is a 27‑foot high‑performance trailerable sportboat featuring a fractional sloop rig and a lifting bulb keel. Weighing just over 2,100 lb and carrying around 370 sq ft of upwind sail, it delivers exhilarating planing performance with small‑boat simplicity — one of the most highly regarded lightweight racers of its size.
Construction Details
| Designer | Jim Antrim |
|---|---|
| Builder | Antrim Design / Richmond Boat Works (California, USA) |
| LOA | 27.830 ft |
| LWL | 23.750 ft |
| Beam | 9.250 ft |
| Displacement | 2125 lb |
| Ballast | 730 lb |
| Max Draft | 6.000 ft |
| Min Draft | 3.330 ft |
| Year Built | 1996 |
The standard boat dimensions
| i | 28.25 ft |
|---|---|
| j | 9.75 ft |
| p | 33.75 ft |
| e | 14 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 28.25 ft | 9.75 ft | 33.75 ft | 14 ft | - | - | - | - |
Sails
Antrim 27 - MAINSAIL
| Luff | * 33.75 ft - (10287 mm) |
|---|---|
| Foot | * 14 ft - (4267 mm) |
| Leech | * 35.94 ft - (10955 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 36.08 ft - (10997 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 242.343 ft² |
| Edit in Calculator | |
Antrim 27 - JIBSAIL
| Luff | 27.83 ft - (8483 mm) |
|---|---|
| Foot | 10.46 ft - (3188 mm) |
| Leech | 25.25 ft - (7696 mm) |
| Percentage LP | 107 % |
| Length Perpendicular | * 11.21 ft - (3417 mm) |
| Deck Angle | * 12 ° |
| Area | * 131.88 ft² |
| Comments | Class jib per plan |
| Edit in Calculator | |
Antrim 27 - JIBSAIL
| Luff | * 23.91 ft - (7288 mm) |
|---|---|
| Foot | * 13.09 ft - (3990 mm) |
| Leech | * 20.49 ft - (6245 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 11.21 ft - (3417 mm) |
| Deck Angle | * 12 ° |
| Area | * 134.02 ft² |
| Edit in Calculator | |
Antrim 27 - GENOA
| Luff | * 28.4 ft - (8656 mm) |
|---|---|
| Foot | * 15.89 ft - (4843 mm) |
| Leech | * 26.59 ft - (8105 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 14.63 ft - (4459 mm) |
| Deck Angle | * 4 ° |
| Area | * 207.77 ft² |
| Edit in Calculator | |
Antrim 27 - ASYMMETRICAL
| Luff | * 28.4 ft - (8656 mm) |
|---|---|
| Foot | * 16.09 ft - (4904 mm) |
| Leech | * 26.13 ft - (7964 mm) |
| Perc LP | * 165 % |
| Area | * 342.72 ft² |
| Edit in Calculator | |
