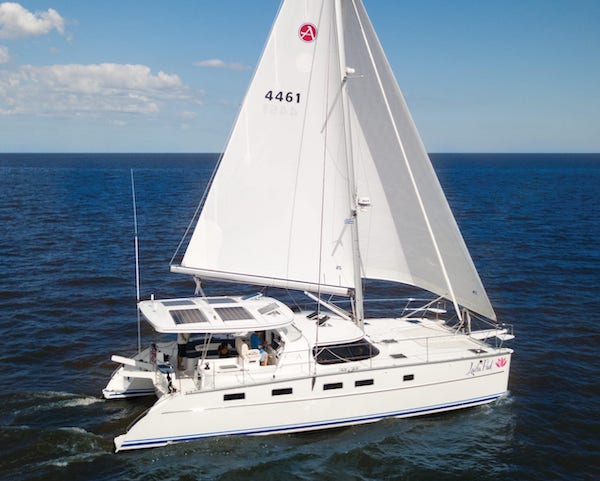

Antares 44
Description
The Antares 44 is a premier blue water cruising catamaran designed by Ted Clements and built by Antares Yachts in Argentina, evolving from the PDQ Antares 42 after PDQ ceased sailboat production in 2002. Introduced in 2003, with variants like the 44i (improved), 44 GS (grand salon), and 44 GT (grand tourer, 2020), it’s engineered for long-range liveaboard comfort and safety, featuring twin Yanmar diesel engines (2 x 40 hp, shaft drive), a self-tacking jib, and optional hybrid propulsion. Its wide beam, low draft, and spacious layout (3 cabins, 2 heads) make it ideal for families or couples, with superior storage and ergonomics for ocean passages.
Construction Details
| Designer | Ted Clements |
|---|---|
| Builder | Antares Yachts |
| Length | 44.000 ft |
| LOA | 44.000 ft |
| LWL | 43.500 ft |
| Beam | 21.750 ft |
| Displacement | 22500 lb |
| Max Draft | 4.000 ft |
The standard boat dimensions
| i | 43 ft |
|---|---|
| j | 14 ft |
| p | 47 ft |
| e | 17 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 43 ft | 14 ft | 47 ft | 17 ft | - | - | - | - |
Sails
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 43.75 ft - (13335 mm) |
| Foot | 24.5 ft - (7468 mm) |
| Leech | 40.75 ft - (12421 mm) |
| Perc LP | * 165 % |
| Area | * 804 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 42.96 ft - (13094 mm) |
| MidGirth | * 25.2 ft - (7681 mm) |
| Foot | * 25.2 ft - (7681 mm) |
| Perc LP | * 180 % |
| Area | * 920 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 24.87 ft - (7580 mm) |
| Foot | * 10.52 ft - (3206 mm) |
| Leech | * 20.35 ft - (6203 mm) |
| Perc LP | * 60 % |
| Length Perp | * 8.4 ft - (2560 mm) |
| Deck Angle | * 18.99 ° |
| Area | * 104.45 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
