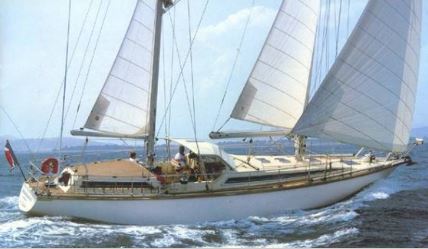

Amel Mango 53
Description
Displacement 37,480 LWL 41-2 Beam 14-1 Sail Area 1,615 Mast Height 62-3 Balloner area 818 sq ft
Construction Details
| Designer | Unknown |
|---|---|
| Length | 53.000 ft |
The standard boat dimensions
| i | 49.42 ft |
|---|---|
| j | 14.42 ft |
| p | 49.17 ft |
| e | 15 ft |
| p2 | 30.75 ft |
| e2 | 9.25 ft |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 49.42 ft | 14.42 ft | 49.17 ft | 15 ft | 30.75 ft | 9.25 ft |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 48.41 ft - (14755 mm) |
| MidGirth | * 25.2 ft - (7681 mm) |
| Foot | * 25.2 ft - (7681 mm) |
| Perc LP | * 180 |
| Area | * 1037 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 30.75 ft - (9373 mm) |
| Foot | 20 ft - (6096 mm) |
| Leech | * 28.29 ft - (8623 mm) |
| Perc LP | * 165 |
| Area | * 461 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 49.17 ft - (14987 mm) |
| Foot | * 15 ft - (4572 mm) |
| Leech-AftHdBd | * 50.63 ft - (15432 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 50.9 ft - (15514 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 379.23 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 48.5 ft - (14783 mm) |
| Foot | 21 ft - (6401 mm) |
| Leech | 46 ft - (14021 mm) |
| Percentage LP | * 137.38 % |
| Length Perpendicular | * 19.81 ft - (6038 mm) |
| Deck Angle | * 3.15 ° |
| Area | * 480.28 ft² |
| Sail Type | MIZZEN |
|---|---|
| Luff | * 30.75 ft - (9373 mm) |
| Foot | * 9.25 ft - (2819 mm) |
| Leech-AftHdBd | * 31.52 ft - (9607 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 31.8 ft - (9693 mm) |
| Head (inches) | * 4 in |
| Area (no Roach) | * 144.99 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | 30 ft - (9144 mm) |
| Foot | 16 ft - (4877 mm) |
| Leech | 27 ft - (8230 mm) |
| Perc LP | * 99.38 |
| Length Perp | * 14.33 |
| Deck Angle | * 10.14 ° |
| Area | * 214.95 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 48.91 ft - (14908 mm) |
| Foot | 33 ft - (10058 mm) |
| Leech | * 46.29 ft - (14109 mm) |
| Percentage LP | * 208.25 % |
| Length Perpendicular | * 30.03 ft - (9153 mm) |
| Deck Angle | * 8.23 ° |
| Area | * 734.38 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 50 ft - (15240 mm) |
| Foot | 27 ft - (8230 mm) |
| Leech | 47 ft - (14326 mm) |
| Perc LP | * 165 |
| Area | * 1012 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 35.5 ft - (10820 mm) |
| Foot | 20 ft - (6096 mm) |
| Leech | 31.5 ft - (9601 mm) |
| Perc LP | * 165 |
| Area | * 532 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
