Amel Kirk 36
Description

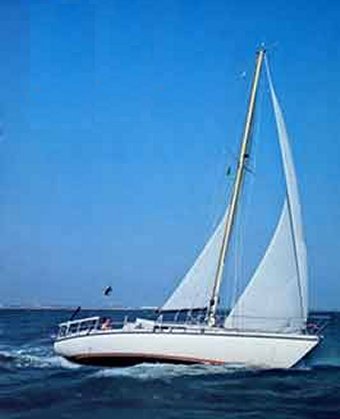

The Amel Kirk 36 (also simply called the Kirk) is a classic French-built cruising monohull designed by Henri Amel himself, the founder of Chantiers Amel in La Rochelle. Launched in 1971 as Amel's first major commercial success (over 100 units produced by 1978), it marked the yard's early focus on seaworthy, owner-friendly blue water yachts. At 36 feet, it's compact yet robust, with a narrow hull for slicing through waves, a low center-of-gravity bulb keel for exceptional stability, and thoughtful features like protected cockpits and easy single-handing setups—hallmarks of Amel's philosophy. Built during an era when long-distance cruising demanded durability over speed, the Kirk 36 excels as a coastal or ocean-crossing vessel for couples or small families, prioritizing safety and comfort over luxury volume.
Construction Details
| Designer | Henri Amel |
|---|---|
| Builder | Chantiers Amel |
| Length | 36.000 ft |
| LOA | 36.250 ft |
| LWL | 29.800 ft |
| Beam | 9.840 ft |
| Displacement | 11464 lb |
| Ballast | 4250 lb |
| Max Draft | 5.250 ft |
The standard boat dimensions
| i | 41 ft |
|---|---|
| j | 12.42 ft |
| p | 34.42 ft |
| e | 12.50 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 41 ft | 12.42 ft | 34.42 ft | 12.50 ft | - | - | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 34.42 ft - (10491 mm) |
| Foot | * 12.5 ft - (3810 mm) |
| Leech | * 35.93 ft - (10951 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 36.21 ft - (11037 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 222.47 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 34.27 ft - (10445 mm) |
| Foot | * 16.3 ft - (4968 mm) |
| Leech | * 30.02 ft - (9150 mm) |
| Percentage LP | * 114.98 % |
| Length Perpendicular | * 14.28 ft - (4353 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 244.66 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 40.7 ft - (12405 mm) |
| Foot | * 19.94 ft - (6078 mm) |
| Leech | * 38.41 ft - (11707 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 18.63 ft - (5678 mm) |
| Deck Angle | * 4.04 ° |
| Area | * 379.11 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 39.5 ft - (12040 mm) |
| Foot | 17.33 ft - (5282 mm) |
| Leech | 37 ft - (11278 mm) |
| Percentage LP | * 130.19 % |
| Length Perpendicular | * 16.17 ft - (4929 mm) |
| Deck Angle | * 4.19 ° |
| Area | * 319.44 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 41.5 ft - (12649 mm) |
| Foot | 21.25 ft - (6477 mm) |
| Leech | 38 ft - (11582 mm) |
| Perc LP | * 165 % |
| Area | * 661 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
