Alpa 8.25
Description

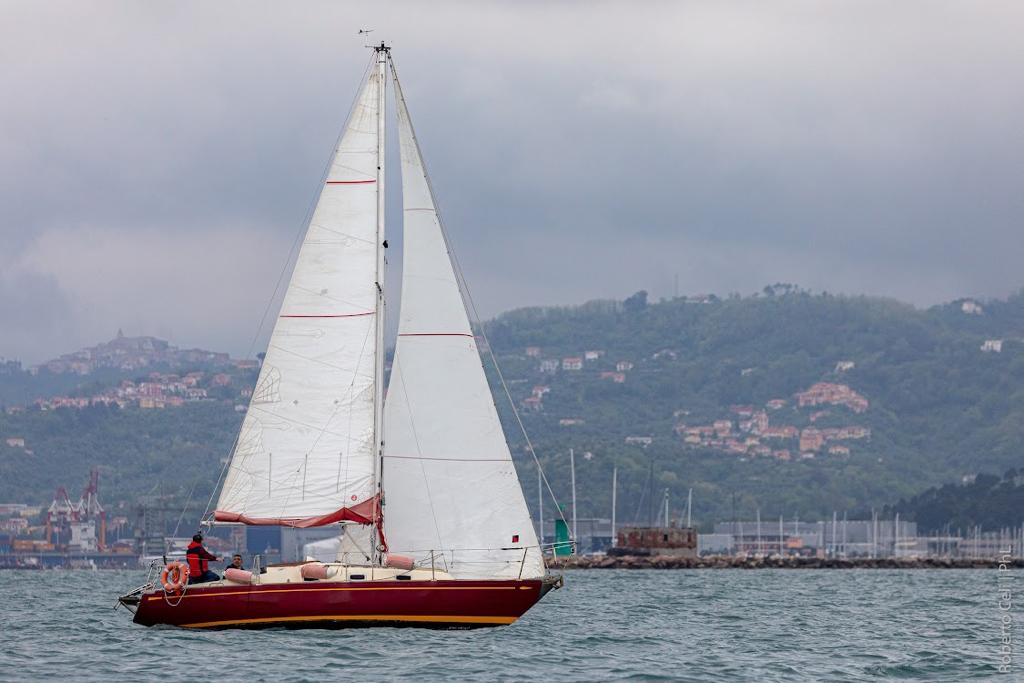

The Alpa 8.25 is a compact cruiser. Her substantial displacement provides a comfortable, sea-kindly motion, Her generous sail plan delivers excellent light-air performance. Well-suited for coastal cruising with occasional overnight passages.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 27.000 ft |
| LOA | 27.080 ft |
| LWL | 19.850 ft |
| Beam | 8.520 ft |
| Displacement | 4850 lb |
| Max Draft | 5.250 ft |
The standard boat dimensions
| i | 35.73 ft |
|---|---|
| j | 10.83 ft |
| p | 30.02 ft |
| e | 10.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 35.73 ft | 10.83 ft | 30.02 ft | 10.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| 23 | * 30.02 |
| 10 | * 10.5 |
| 24.55 | * 31.25 |
| 88 | * 88 |
| 24.76 | * 31.46 |
| 4.5 | * 4.5 |
| 118.76 | * 162.38 |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 29.87 ft - (9104 mm) |
| Foot | * 14.22 ft - (4334 mm) |
| Leech | * 26.15 ft - (7971 mm) |
| Percentage LP | * 114.96 % |
| Length Perpendicular | * 12.45 ft - (3795 mm) |
| Deck Angle | * 12.04 ° |
| Area | * 185.92 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 35.47 ft - (10811 mm) |
| Foot | * 17.38 ft - (5297 mm) |
| Leech | * 33.48 ft - (10205 mm) |
| Percentage LP | * 149.95 % |
| Length Perpendicular | * 16.24 ft - (4950 mm) |
| Deck Angle | * 4.01 ° |
| Area | * 288.01 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 34.5 ft - (10516 mm) |
| Foot | 13.42 ft - (4090 mm) |
| Leech | 32 ft - (9754 mm) |
| Percentage LP | * 114.96 % |
| Length Perpendicular | * 12.45 ft - (3795 mm) |
| Deck Angle | * 5.1 ° |
| Area | * 214.69 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 36 ft - (10973 mm) |
| Foot | 18.5 ft - (5639 mm) |
| Leech | 34 ft - (10363 mm) |
| Perc LP | * 165 % |
| Area | * 500 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
