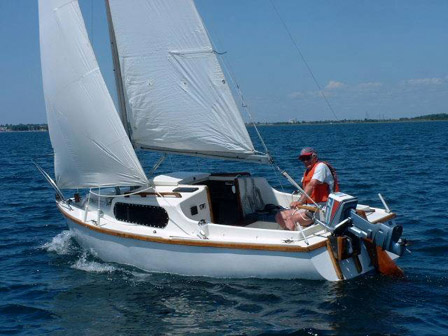

ALACRITY 19
Description
Introduced in 1960
Construction Details
| Designer | P. Stephenson |
|---|---|
| Length | 18.500 ft |
| LOA | 18.500 ft |
| LWL | 17.000 ft |
| Beam | 6.920 ft |
| Displacement | 1500 lb |
| Max Draft | 1.820 ft |
The standard boat dimensions
| i | 23 ft |
|---|---|
| j | 6.20 ft |
| p | 20 ft |
| e | 8.70 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 23 ft | 6.20 ft | 20 ft | 8.70 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | 19 ft - (5791 mm) |
| Foot | 7 ft - (2134 mm) |
| Leech | 16.5 ft - (5029 mm) |
| Percentage LP | * 96.61 % |
| Length Perpendicular | * 5.99 ft - (1826 mm) |
| Deck Angle | * 16.1 ° |
| Area | * 56.89 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | 21.65 ft - (6599 mm) |
| Foot | 11.15 ft - (3399 mm) |
| Leech | 20.25 ft - (6172 mm) |
| Perc LP | * 166.45 |
| Length Perp | * 10.32 |
| Deck Angle | * 7.19 ° |
| Area | * 111.69 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 22.63 ft - (6898 mm) |
| MidGirth | * 11.16 ft - (3402 mm) |
| Foot | * 11.16 ft - (3402 mm) |
| Perc LP | * 180 |
| Area | * 215 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 22.5 ft - (6858 mm) |
| Foot | 9.83 ft - (2996 mm) |
| Leech | 21.25 ft - (6477 mm) |
| Percentage LP | * 149.03 % |
| Length Perpendicular | * 9.24 ft - (2816 mm) |
| Deck Angle | * 4.92 ° |
| Area | * 103.92 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 19.75 ft - (6020 mm) |
| Foot | 7.5 ft - (2286 mm) |
| Leech | 18 ft - (5486 mm) |
| Percentage LP | * 110.16 % |
| Length Perpendicular | * 6.83 ft - (2082 mm) |
| Deck Angle | * 9.3 ° |
| Area | * 67.46 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 23 ft - (7010 mm) |
| Foot | 10.5 ft - (3200 mm) |
| Leech | 21 ft - (6401 mm) |
| Perc LP | * 165 |
| Area | * 181 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 20 ft - (6096 mm) |
| Foot | * 8.7 ft - (2652 mm) |
| Leech-AftHdBd | * 21.37 ft - (6514 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 21.53 ft - (6562 mm) |
| Head (inches) | * 4 in |
| Area (no Roach) | * 90.09 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 22.25 ft - (6782 mm) |
| Foot | 8.33 ft - (2539 mm) |
| Leech | 20.92 ft - (6376 mm) |
| Percentage LP | * 126.29 % |
| Length Perpendicular | * 7.83 ft - (2387 mm) |
| Deck Angle | * 4.92 ° |
| Area | * 87.08 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
