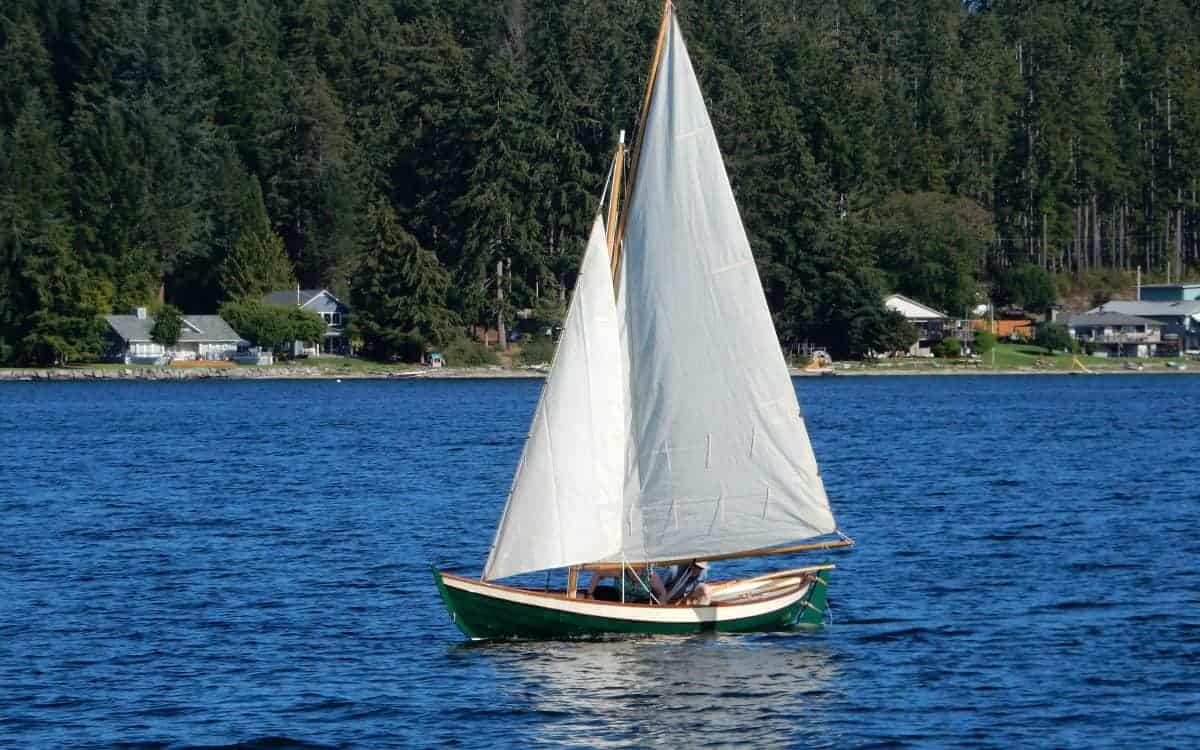

Acrtic Tern, Gunter Sloop
Description
Double ended Gunter Sloop by Iain Oughtred. Approx 450 lbs. Glued Lapstrake Constuction
The standard boat dimensions
| i | 13 ft |
|---|---|
| j | 4 ft |
| p | 8 ft |
| e | 9 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 13 ft | 4 ft | 8 ft | 9 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GAFF MAIN |
|---|---|
| Luff | * 8 ft - (2438 mm) |
| Foot | * 9 ft - (2743 mm) |
| Leech | 18.91 ft - (5764 mm) |
| Head | * 88 ft - (26822 mm) |
| Diag (clew/throat) | * 11.83 ft - (3606 mm) |
| Tack Angle | 11.38 ° |
| Area | * 99.58 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
