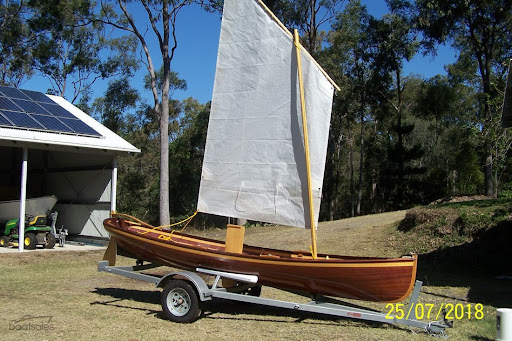

Acorn 15
Description
Two sail rigs shown -- a leg-o-mutton and a sprit. (see drawing)
Sail calculations are not available for this boat as no dimensions are available.
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GUNTER |
|---|---|
| Luff | 14.5 ft - (4420 mm) |
| Foot | 8.42 ft - (2566 mm) |
| Leech | 14.75 ft - (4496 mm) |
| Head | * 88 ft - (26822 mm) |
| Diag (clew/throat) | * 16.51 ft - (5032 mm) |
| Area | * 58.94 ft² |
| Sail Type | LEG-O-MUTTON |
|---|---|
| Luff | 12 ft - (3658 mm) |
| Foot | 6.75 ft - (2057 mm) |
| Leech | 12.75 ft - (3886 mm) |
| Tack Angle | * 80.41 ° |
| Diag (clew/head) | 12.75 ft - (3886 mm) |
| Area | * 39.93 ft² |
| Sail Type | SPRIT |
|---|---|
| Luff | 5.17 ft - (1576 mm) |
| Foot | 6.58 ft - (2006 mm) |
| Leech | 10.92 ft - (3328 mm) |
| Head | * 84.92 ft - (25884 mm) |
| Diag (clew/throat) | 8.42 ft - (2566 mm) |
| Tack Angle | 7.25 ° |
| Area | * 47.51 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
