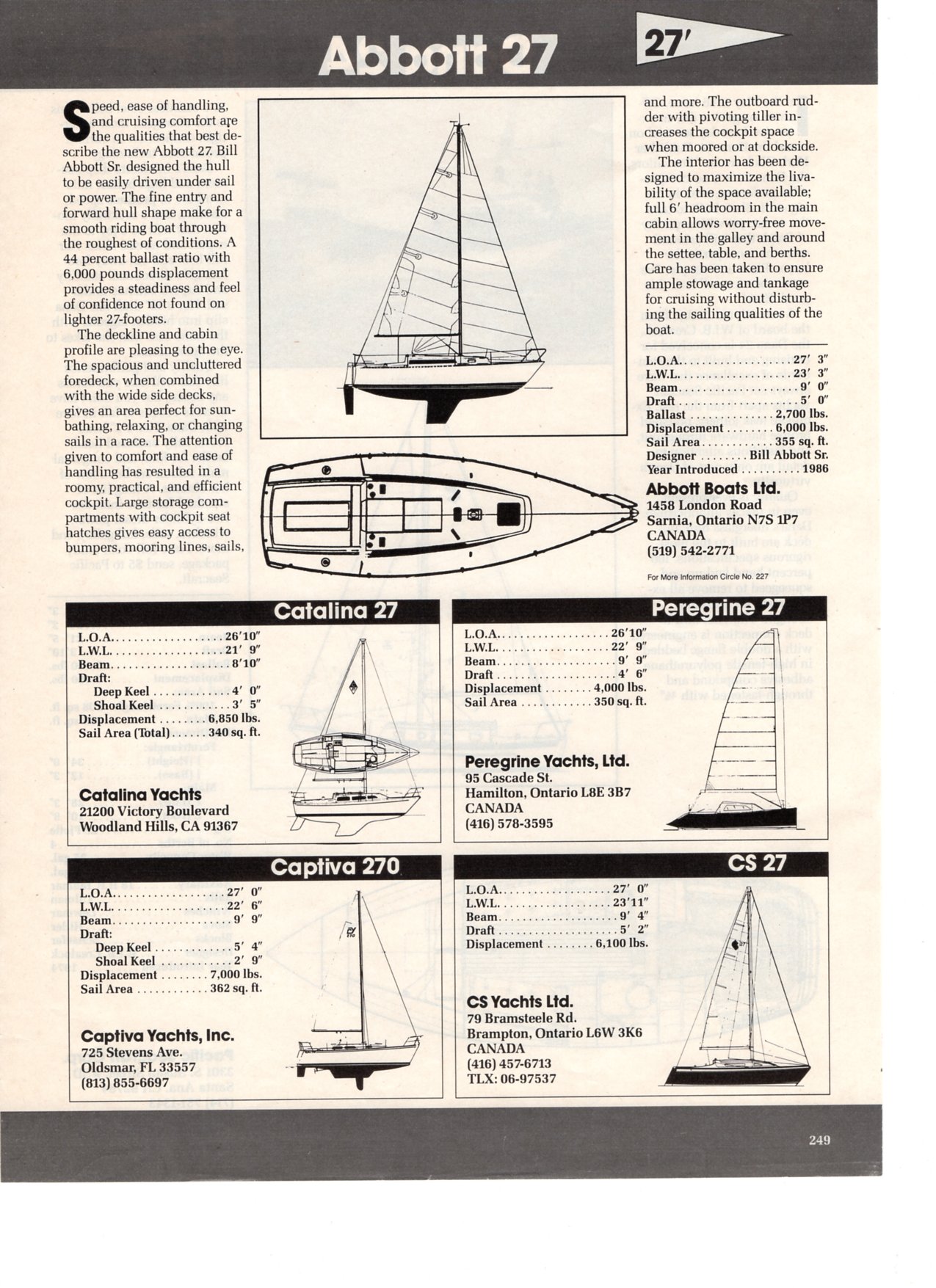

Abbott 27
Description
A Canadian boat designed by Bill Abbott, Sr. in 1986
Construction Details
| Designer | W. Abbott |
|---|---|
| Length | 27.000 ft |
| LOA | 27.330 ft |
| LWL | 22.750 ft |
| Beam | 9.000 ft |
| Displacement | 6000 lb |
| Max Draft | 4.920 ft |
The standard boat dimensions
| i | 34.25 ft |
|---|---|
| j | 11 ft |
| p | 29 ft |
| e | 11.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 34.25 ft | 11 ft | 29 ft | 11.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 29 ft - (8839 mm) |
| Foot | * 11.5 ft - (3505 mm) |
| Leech-AftHdBd | * 30.54 ft - (9309 mm) |
| Tack Ang | * 87.99 ° |
| Diag (clew/head) | * 30.82 ft - (9394 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 171.81 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 28.78 ft - (8772 mm) |
| Foot | * 14.58 ft - (4444 mm) |
| Leech | * 24.97 ft - (7611 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 12.65 ft - (3856 mm) |
| Deck Angle | * 12.02 ° |
| Area | * 182.02 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 34.17 ft - (10415 mm) |
| Foot | * 17.77 ft - (5416 mm) |
| Leech | * 32.13 ft - (9793 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 16.5 ft - (5029 mm) |
| Deck Angle | * 4 ° |
| Area | * 281.89 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 34.17 ft - (10415 mm) |
| MidGirth | * 19.8 ft - (6035 mm) |
| Foot | * 19.8 ft - (6035 mm) |
| Perc LP | * 180 |
| Area | * 575 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 34.17 ft - (10415 mm) |
| Foot | * 18.15 ft - (5532 mm) |
| Leech | * 31.44 ft - (9583 mm) |
| Perc LP | * 165 |
| Area | * 465 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
