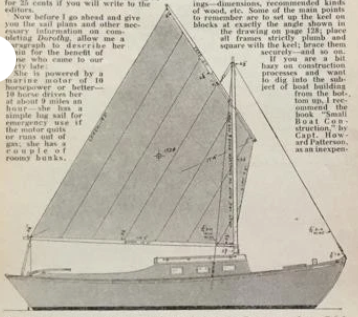

20' spritsail - Dorothy

Description

The 20' spritsail - Dorothy is a sailboat designed by John Gardner.

Sail calculations are not available for this boat as some dimensions are missing.

Construction Details

Designer John Gardner
Length 20.000 ft

The standard boat dimensions

i -
j -
p -
e -
p2 -
e2 -

Sails

Sail Type SPRIT
Luff 10.75 ft - (3277 mm)
Foot 10 ft - (3048 mm)
Leech 15.75 ft - (4801 mm)
Head * 82.92 ft - (25274 mm)
Diag (clew/throat) 13.75 ft - (4191 mm)
Tack Angle 8 °
Area * 108.33 ft²
Sail Type JIBSAIL
Luff 12.75 ft - (3886 mm)
Foot 6.5 ft - (1981 mm)
Leech 9.75 ft - (2972 mm)
Length Perpendicular * 4.87 ft - (1484 mm)
Area * 31.05 ft²
Sail Type SPRIT
Luff 12 ft - (3658 mm)
Foot 10.5 ft - (3200 mm)
Leech 15.33 ft - (4673 mm)
Head * 78.81 ft - (24021 mm)
Diag (clew/throat) 14.33 ft - (4368 mm)
Tack Angle 8 °
Area * 118.47 ft²
Sail Type JIBSAIL
Luff 13.5 ft - (4115 mm)
Foot 7.25 ft - (2210 mm)
Leech 11 ft - (3353 mm)
Length Perpendicular * 5.9 ft - (1798 mm)
Area * 39.82 ft²

Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
