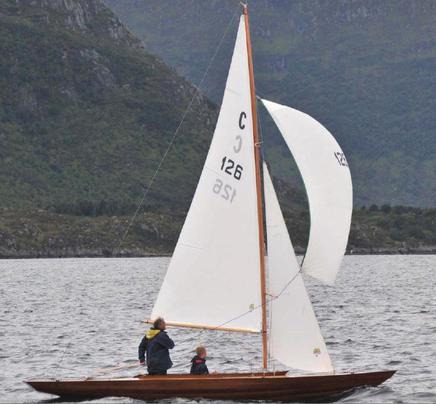

12.5 Kvm \Krysser
Description
Designed by Christian Jensen in 1929 the main is 9.7 sq.m and the jib is 2.8 sq.m. Hence, 12.5 sq.m. On January 13, 1930 the design was adopted by the Royal Norwegian Yacht Club (KNS) as the national ‘Junior Boat’. Later the boat was also equipped with a spinnaker – approximately 10 sq.m.
The standard boat dimensions
| i | 15.54 ft |
|---|---|
| j | 4.60 ft |
| p | 21.30 ft |
| e | 9.84 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 15.54 ft | 4.60 ft | 21.30 ft | 9.84 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | 14.75 ft - (4496 mm) |
| Foot | 4.9 ft - (1494 mm) |
| Leech | 12.95 ft - (3947 mm) |
| Percentage LP | * 91.52 % |
| Length Perpendicular | * 4.21 ft - (1283 mm) |
| Deck Angle | * 14.24 ° |
| Area | * 31.06 ft² |
| Comments | Sail dimensions provided by customer. |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 21.3 ft - (6492 mm) |
| Foot | * 9.84 ft - (2999 mm) |
| Leech-AftHdBd | * 22.93 ft - (6989 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 23.15 ft - (7056 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 108.23 ft² |
| Comments | P and E provided by customer. |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
