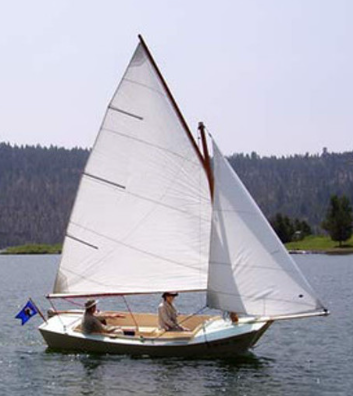

Pacific Pelican
Description
The Pacific Pelican is a 14-foot plywood sailing dory-pram designed by William H. Short (son of San Francisco Pelican designer Bill Short) in the early 1970s as a larger, more versatile evolution of the original 12-foot San Francisco Pelican. Built primarily by amateur builders using stitch-and-glue plywood, it expands on the classic dory-pram concept with increased beam, sail area, and freeboard—making it suitable for coastal daysailing, junior training, and light overnighting in protected waters like Puget Sound, the San Juan Islands, or British Columbia. While retaining the signature sampan-style pram bow and flared dory sides for dryness and stability, the Pacific Pelican offers a roomier cockpit, optional Bermuda or gaff rig, and greater payload, positioning it as a "big sister" to the San Francisco model. Though never formalized into a one-design class (unlike its predecessor), a handful of examples were built in the Pacific Northwest, with plans occasionally circulating among small-boat enthusiasts. Its design reflects a shift from urban bay racing to rural and coastal family cruising, emphasizing ease of trailering and low-cost construction.
Construction Details
| Designer | William H. Short |
|---|---|
| Length | 14.580 ft |
| LOA | 14.580 ft |
| Beam | 5.500 ft |
| Displacement | 390 lb |
| Max Draft | 3.000 ft |
| Min Draft | 0.330 ft |
| Year Built | 1971 |
The standard boat dimensions
| i | 5 ft |
|---|---|
| j | 5 ft |
| p | 13 ft |
| e | 6 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 5 ft | 5 ft | 13 ft | 6 ft | - | - | - | - |
Blueprints2>
Sails
Pacific Pelican - JIBSAIL
| Luff | 11.5 ft - (3505 mm) |
|---|---|
| Foot | 8 ft - (2438 mm) |
| Leech | 10 ft - (3048 mm) |
| Area | * 39.2 ft² |
| Edit in Calculator | |
Pacific Pelican - STANDING LUGSAIL
| Luff | 5 ft - (1524 mm) |
|---|---|
| Foot | 11.5 ft - (3505 mm) |
| Leech | 16.33 ft - (4977 mm) |
| Tack Angle | * 87.4 ° |
| Diag (clew/throat) | 12.33 ft - (3758 mm) |
| Head | 10.83 ft - (3301 mm) |
| Area | * 95.48 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
