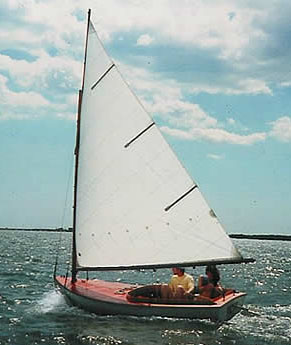

Beetle Cat
Description
The Beetle Cat is an iconic American one-design wooden sailboat designed by John Beetle and first built in 1921 by the Beetle Boat Co. in New Bedford, Massachusetts. Inspired by traditional Cape Cod catboats used for fishing in shallow waters, it's a smaller adaptation of 20–30 ft vessels, emphasizing simplicity, stability, and ease of handling for recreational sailing, racing, or junior training. Over 4,000 hulls have been produced to date, with the design remaining largely unchanged for its centennial in 2021. It's a strict one-design class, built exclusively in wood (oak and cedar) by Beetle, Inc. (formerly through Concordia Company post-WWII), with a canvas-covered deck and gaff rig. Fiberglass copies exist under other names but are not authentic Beetle Cats. Ideal for protected waters like bays, lakes, or coastal areas, it's suited for 1–3 people (especially juniors) and excels in shallow drafts due to its lifting centerboard and protected rudder. Active fleets and regattas, like those by the New England Beetle Cat Boat Association (NEBCBA, founded 1940), keep the class vibrant, with championships honoring builder Leo Telesmanick. 450 lbs. Weight. 11'8" LWL. 6' Beam. 8" Draft board up. 2' Draft board down.
Construction Details
| Designer | John Beetle |
|---|---|
| Builder | Beetle Boat Co. |
| Length | 12.330 ft |
| LOA | 12.330 ft |
| LWL | 11.670 ft |
| Beam | 6.080 ft |
| Displacement | 450 lb |
| Max Draft | 2.000 ft |
| Min Draft | 0.500 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Blueprints2>
Sails
Beetle Cat - GAFF MAIN
| Luff | 7.75 ft - (2362 mm) |
|---|---|
| Foot | 13 ft - (3962 mm) |
| Leech | 17.33 ft - (5282 mm) |
| Tack Angle | * 84.64 ° |
| Diag (clew/throat) | 14.5 ft - (4420 mm) |
| Head | 8.58 ft - (2615 mm) |
| Area | * 112.22 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
